PVR 1100 S/C/T Technical Data

Enlace con el fabricante

General Data


Size of Case 435 x 98 x 336 mm (B x H x T)
Operating Temperature 0°C to  +45°C
Storage Temperature -10°C to +70°C
Software-Updates via Network or CD

Electric Power Supply


Input Voltage 90 to 250 V AC, 50/60 Hz
Activity Input Max. 65 W (in operation); 2 W (Deep-Standby)
Power Supply Unit Removable Power Cord

Video


Decoding MPEG-1, MPEG-2, MPEG-4 and Variants, WM9 SD, WM9 HD (720p); via Software-Update upgradeable
Encoding MPEG-2; extendible with appropriate Software
Image Format 4:3 and 16:9
Resolution (TV-Edition) 640 x 480, 720 x 576
HDTV-Modes 480p, 720p und 1080i

Audio


Decoding MPEG-1 Layer 2 (MP2) and 3 (MP3), MPEG-4 AAC, WMA, Dolby Digital 2.0
Encoding MPEG-1 Layer 2 and 3
Bitstream out Dolby Digital 2.0, 5.1, 6.1 (EX); DTS 5.1, 6.1 (ES)

System-Ressourcen


Processor AMD Geode SC2200, 300 MHz
Co-Processor Equator BSP-15, 350 MHz
Primary Storage 128 MB SD-RAM PC133, extendible up to 256 MB (SO-DIMM, single sided)
Storage Co-Processor 64 MB SD-RAM PC133
Flash-Storage 32 MB Disk-on-Chip
Extension Docking 1 x Mini-PCI
Hard-Drive Support Commercial PC-Hard-Drives (IDE 3,5 inch), vibration resistant, lined with rubber
Video-Tuner 2 Inputs for Tuner-modules, built in series with two Tuners of the same type(2 x DVB-S or 2 x DVB-CT)*
Internal Conditional-Access-Module NeotionCrypt

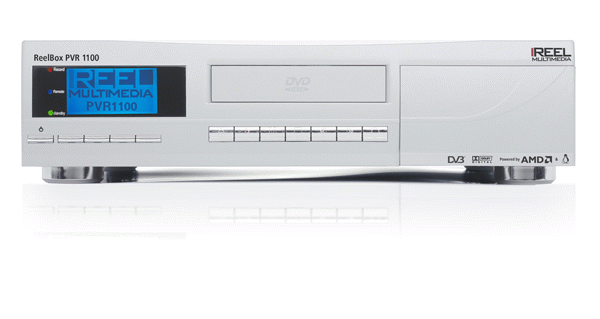

Operating Functions


Keys 4 x dynamic to control the functions on the display, 6 fixed, of which 7 keys are for DVD functions and one on/off switch
Display Image Capable LC Display 128 x 64 px, 66 x 32 mm

Circuit Points (Front)


Common-Interface-Slots 2 x Common Interface according to DVB Standard
Smartcard-Reader 1 x Smartcard-Reader
Circuit Points for External Devices 1 x IEEE 1394; 1 x USB 1.0 (Typ A)
Analog Video Inputs Composite (Cinch) und S-Video (Hosides)
Analog Audio Input Stereo Line-In (Cinch)
Digital Audio Inputs S/PDIF optical und Coaxial

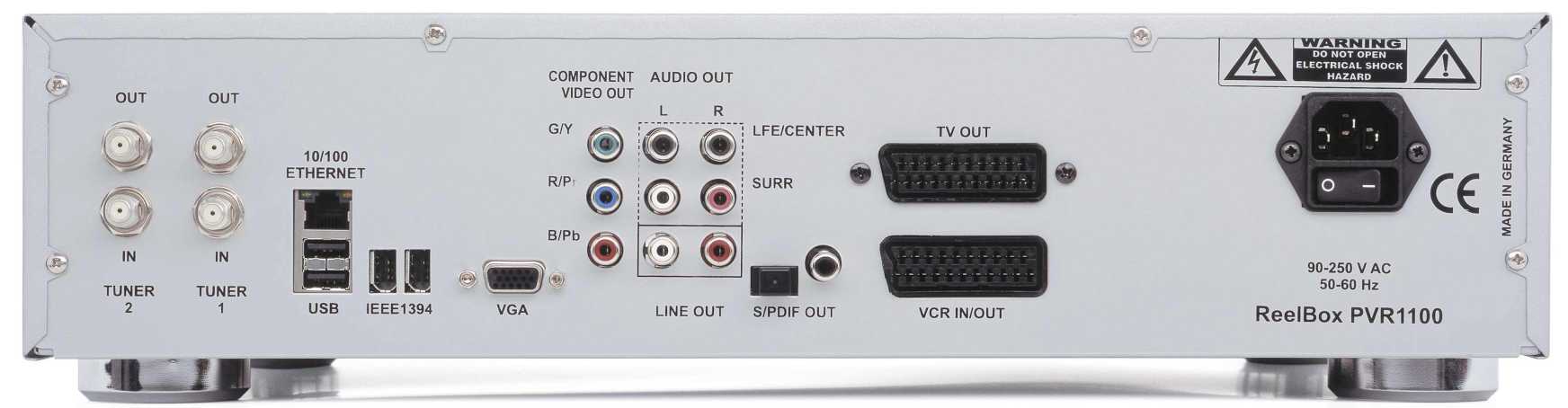

Circuit Points (Back)


Circuit Points for External Devices 2 x IEEE 1394; 2 x USB 1.0 (Typ A)
Network Connection 1 x RJ45 Fast Ethernet (10/100 MBit/s)
TV-SCART-Box Video Output (CVBS, RGB/YUV, S-Video), Audio Output (Stereo)
VCR-SCART-Box Video Output (CVBS, RGB/YUV, S-Video), Audio Output (Stereo), Video Input (CVBS, S-Video), Audio Input
Analog Video Output RGB/YUV (Cinch), VGA
Analog Audio Output 6 x Cinch
Digital Audio Output S/PDIF Optical and coaxial (incl. Dolby Digital und DTS bitstream out

DVB-Receiver


Tuner-Module DVB-S*


Demodulation QPSK
Rate of Input Data 1 to 45 MS/s
Frequency Range 950 to 2150 MHz
Input Level -25 to -70 dMB
LNB Control 18 V horizontal, 13,5 V vertical (500 mA)
DISEqC 1.0, 1.1, 1.2, 2.0
Input/Output 2 x F-Box IEC 164-24

Tuner-Module DVB-C/T*


Demodulation QAM, QFDM
Rate of Input Data 1 to 45 MS/s
Frequency Range 47 to 862 Mhz, VHF 48,5 to 226,5 Mhz, UHF 470 to 862 MHz
Input Level -10 to -70 dBM
Input/Output 2 x IEC 164-24 female/2 x IEC 164-24 male

Functions


Program list Fast switching of programs, unlimited capacity for radio/TV stations, various search functions, current program lists can be blended in.
Electronic Program Guide (EPG) SI-EPG
Teletext Filtering according to ETS 300 472; Internal TOF/FLOF-Videotext; subtitle display

PVR (Personal Videorecorder)


Recording Options to the Internal Hard-Drive (optional); via Network with CIFS- or NFS-Clearance; via FireWire to External Devices
Two separate Tuners Possibility to view one channel and record another simultaneously
Timer Unlimited number of selections, no timing restrictions

DVD-Player


Type of Drive DVD-ROM (standard-PC-drive, IDE 5,25 inch)
Supported Media Types DVD-ROM, DVD-Video, CD-ROM, CD-DA, CD-ROM/XA, Video-CD, Extra CD, Mixed CD, CD Text; CD-R(W), DVD-R(W) and DVD+R(W)
Regional Code depends on the DVD Drive

Homeserver


Analog-to-Digital Conversion to the Internal Hard-Drive (optional); via Network with CIFS- or NFS-Clearance; via FireWire to External Devices
DV-Recording For Digital cameras at the IEEE1394-Interface
Streaming-Server Stream of Data to the Network

Accessory


Included in Delivery German Manual, Remote Control (with batteries), power supply cord, IDE connection cable for Hard-Drive use, mounting frame and screws for an optional 3,5 inch Hard-Drive, a free one-year subscription to Full-X1, Full-X2, and Full-X3 (as long as supply lasts - limited).
Optional Reel-Tuner DVB-S to change the model PVR 1100 to the model PVR 1100 S, Reel-Tuner DVB-CT to change the model PVR 1100 S to the model PVR 1100CT, it is also possible to fit the ReelBox with components of both.
Servidor contenidos

Todos los aparatos que necesita  en su casa en un solo equipo.

Dos receptores de satélite (canales libres y codificados, tiene lector de tarjeta)
O dos receptores terrestres digitales TDT
Un lector de DVD, CD: Reproduce y almacena en su disco duro sus películas o música favorita
Servidor de películas con salida de audio digital para Home- Cinema
Radio Internet
Servidor WEB para control domótico
Mando a distancia para acceder a todo desde el TV.
Y mucho más ........
